China Solar Ground Mounting System

MRac Pro Ground Terrace PGT8 is optimized from GT8, a cost-effective solution applied for the installation of large-scale and utility-scale solar PV power plant.

item no.:
PGT8
product orgin:
China
color:
Silver or Customized

inquiry now

product detail

Overview
MRac Pro Ground Terrace PGT8 is optimized from GT8, a cost-effective solution applied for the installation of large-scale and utility-scale solar PV power plant. Main components are made of anodized aluminum with good performance of structure strength, stability and anti-corrosion, compatible with varied solar modules. Patented and certified system design ensure projects safety and quick installation.

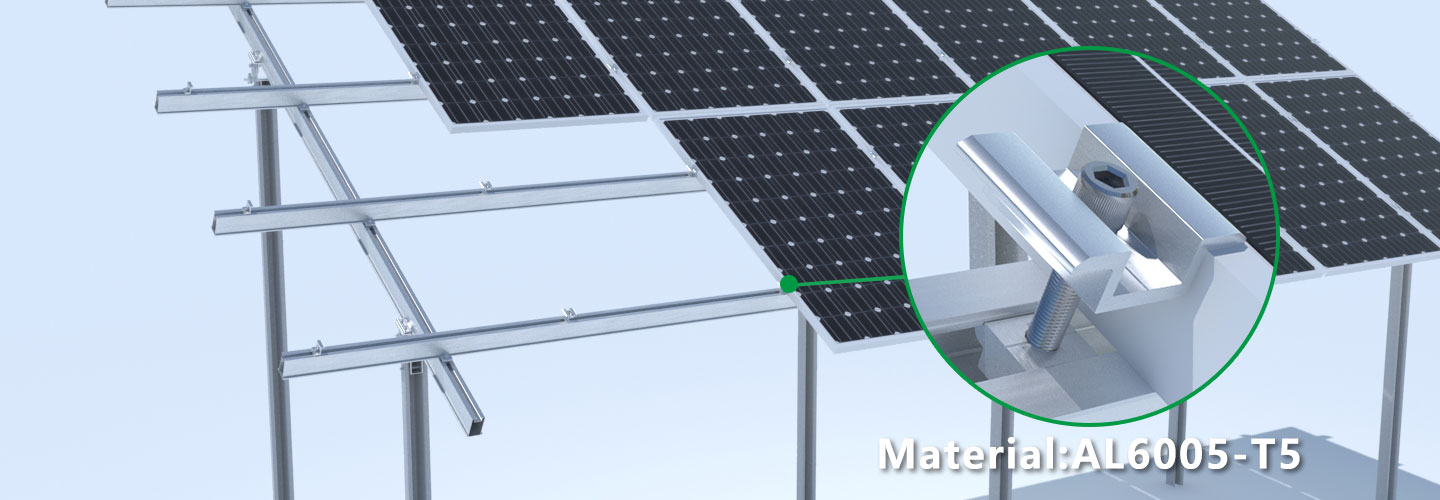

solar ground mounting systems

Features
◆Symmetrical Design of Tilt-in-Nut and Rail Channel
No direction limitation for the nut and rail channel, improving the installation efficiency.
◆No direction limitation for the nut and rail channel, improving the installation efficiency.
Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
◆Flexibility and Adjustability
The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
◆No Front Post Design
Saving material cost without front post design, suitable for low ground clearance projects.

Tilt Angle

◆The available installation tilt angle is 0°~60°
◆Applicable Solar Module:Framed or Frameless
◆Panel Layout:Portrait or Landscape

ground installed solar panels

Service and Support

◆Mibet Energy's professional sales team will provide basic products introduction and training.
◆Mibet Energy's professional technician team will provide a floating mounting solution based on satellite surveyed data.
◆Mibet Energy sales team will provide installation guide and on-line service.
◆Mibet Energy provide 10-year warranty.

Complete ready-to-ship assembly kits

◆ All components in one package
◆ Suitable for pickup vehicle transport

snapnrack ground mount

Suitable Module Types and Layout Orientation

◆ The array layout can be in horizontal
◆ Compatible with all major components in the market

Technical Parameter

Installation Site	Ground
Foundation	U Post
Tilt Angle	0-60°
Wind Load	60m/s
Snow Load	1.6KN/㎡
Ground Clearance	500-2000mm
Applicable Solar Module	Framed or Frameless
Panel Layout	Portrait or Landscape
Design Standard	AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
	International Building Code IBC 2009,
	California Building Code CBC 2010
Material	Q235B(Hot-Dip Galvanized)&Al6005-T5(Anodized)
Fastener	SUS304 & Zinc-Nickel Alloy Electroplated Steel
Small Components	Al6005-T5(Anodized)
Color	Silver or Customized
Warranty	10-Year Warranty
