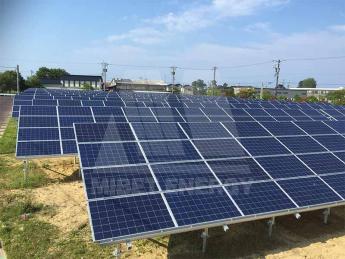

Ground Mounting 25KW Solar Bificial Panel Mount Structure System

MRac Pro Ground Terrace PGT4 Solar PV Mounting System is optimized from GT4, suitable for medium to large scale solar PV projects. Main beams and post are optimized with better design and less material, with strong wind load and snow load resistance. The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites. Patented and certified system design ensure projects afety and quick installation. compatibility to varied solar modules.

1.       Conical Symmetric Cross Beam 90
2.       Splice for Conical Symmetric Cross Beam 90
3.       PGT4 Pre-assembled Support
4.       C Clamp Kit
5.       U25 Inter Clamp Kit
6.       Wide End Clamp Kit
7.       Pro Corrugated T Anchor Plate
8.       Back Diagonal Support

Advantage as follow
1. Symmetrical Design of Tilt-in-Nut and Rail Channel
2. No Drill on Portrait Beam
3. Pre-assembled Components Save Onsite Installation Time for solar PV system
4. Flexibility and Adjustability
5. Special mounting structure design for bi-facial solar modules, no shading at the backside with all angles, more than 15% higher power
