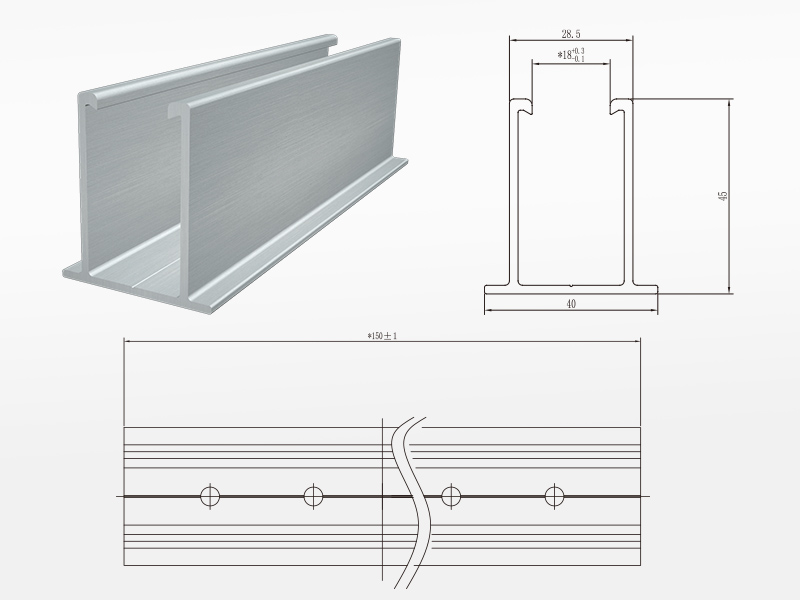

Mini-Rail Kit Metal Roof PV Mounting System

MRac Mini-Rail Kit is mainly applied to Trapezoidal Metal Roof commercial and industrial solar projects.
  • item no.:

    Mini-Rail Kit
  • product orgin:

    China
  • color:

    Silver or Customized
  • product detail

Roof PV Mounting System

Overview

MRac Mini-Rail Kit is mainly applied to Trapezoidal Metal Roof commercial and industrial solar projects. The system can achieve stable and strong connection between the roof support structure and solar modules with modular Patented design. Pre-assembled kits save the installation time and cost onsite.




roof solar mounting systems

Features

Applicable for Different Metal Roofs
Design project by project, selecting configuration of mounting system components flexibly.
Save Installation Time and Cost
Pre-assembled components and clear installation manuals are supplied to save the onsite installation time and cost, lead to better RoI.
Compatible to Different Types of Solar Modules
Compatible to most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.




Tilt Angle

The available installation tilt angle is 0°
Applicable Solar Module:Framed or Frameless
Panel Layout:Landscape or Portrait




solar roof mount system

Service and Support

Mibet Energy's professional sales team will provide basic products introduction and training.
Mibet Energy's professional technician team will provide a floating mounting solution based on satellite surveyed data.
Mibet Energy sales team will provide installation guide and on-line service.
Mibet Energy will provide 10-year quality warranty and 5-year product waranty.




Complete ready-to-ship assembly kits

◆ All components in one package

◆ Suitable for pickup vehicle transport




china roof bracket suppliers

Suitable Module Types and Layout Orientation

The array layout can be in horizontal
Compatible with all major components in the market




Technical Parameter

Installation Site

  Pitched Roof

Roof Type

  Trapezoidal Roof

Tilt Angle

  0-15°

Wind Load

  60m/s

Snow Load

  1.6KN/㎡

System Name

  Mini-Rail Kit

Applicable Solar Module

  Framed or Frameless

Panel Layout

  Portrait or Landscape

Design Standard

  AS/NZS 1170 , DIN 1055 , JIS C 8955:2017,

  International Building Code IBC 2009,

  California  Building Code CBC 2010

Material

  Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)

Fastener

  SUS304 &Zinc-Nickel Alloy Electroplated Steel & Hot Dip Galvanized

Small Components

  Al6005-T5(Anodized)

Color

  Silver or Customized

Warranty

  10-Year Warranty
