PV ground mount systems

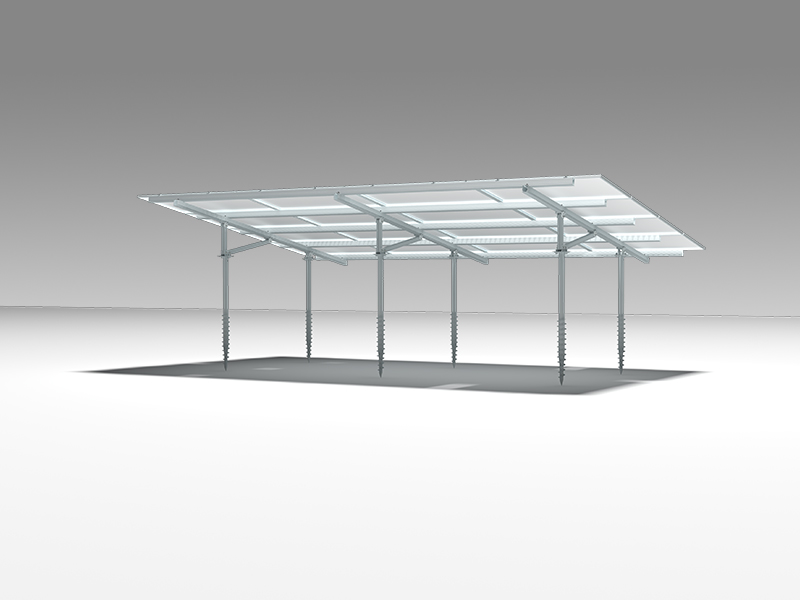

MRac Ground Terrace GT5 is a highly pre-assembled ground mounting system,with strong wind load and snow load resistance.
  • item no.:

    GT5
  • product orgin:

    China
  • color:

    Silver or Customized
  • Installation Site:

    Ground
  • Foundation:

    Concrete Base or Ground Screw
  • Tilt Angle:

    0-60°
  • Wind Load:

    60m/s
  • Snow Load:

    1.6KN/㎡
  • Applicable Solar Module:

    Framed or Frameless
  • Panel Layout:

    Portrait or Landscape
  • Material:

    Al6005-T5(Anodized)
  • Fastener:

    SUS304 &Zinc-Nickel Alloy Electroplated Steel
  • product detail

solar panel ground mount




Overview

MRac Ground Terrace GT5 is a highly pre-assembled ground mounting system, with strong wind load and snow load resistance. The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites, and is mainly applied to medium to large scale solar PV projects. Patented and certified system design ensure projects safety and quick installation.




solar panel ground mount



Features

Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory, no on-site cutting and drilling request, saving the on-site installation time and cost.
Flexibility and Adjustability
The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
Quick Modular Kit Fixation
Most of the components are designed as modular kit with anodized aluminum to further ensure easy and fast construction on site.
No Drill on Portrait Beam
It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.







Tilt Angle

The available installation tilt angle is 0°~60°

Applicable Solar Module:Framed or Frameless
Panel Layout:Portrait or Landscape




solar pv mounting structure




Service and Support

Mibet Energy's professional sales team will provide basic products introduction and training.
Mibet Energy's professional technician team will provide a floating mounting solution based on satellite surveyed data.
Mibet Energy sales team will provide installation guide and on-line service.
Mibet Energy will provide 10-year quality warranty and 5-year product waranty.







Complete ready-to-ship assembly kits

All components in one package
Suitable for pickup vehicle transport






Suitable Module Types and Layout Orientation

The array layout can be in horizontal

Compatible with all major components in the market
