Overview

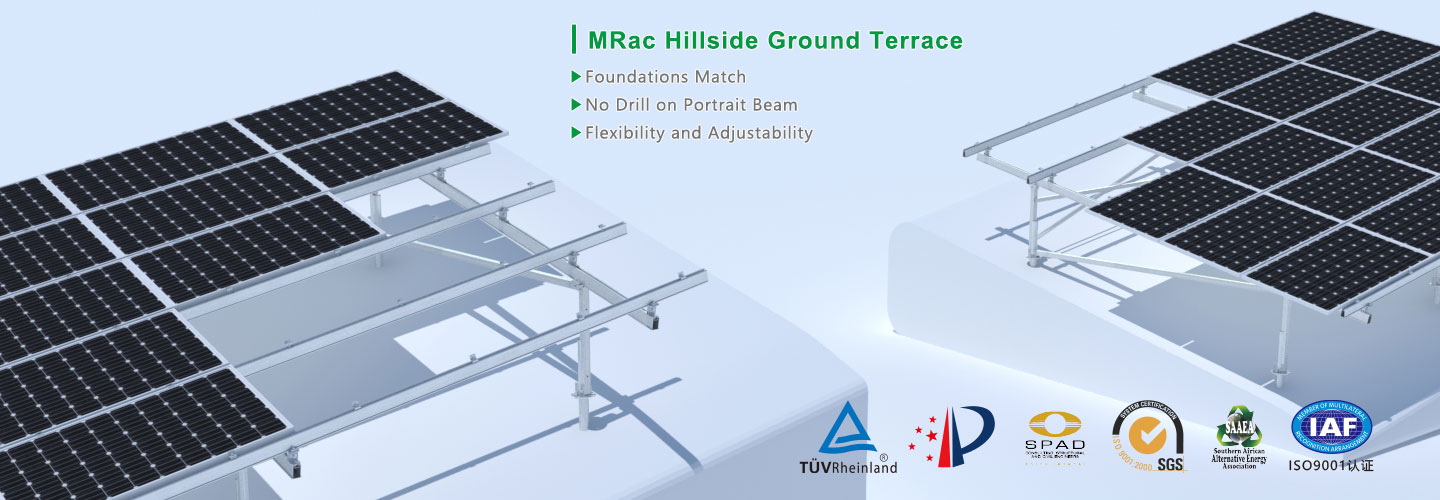

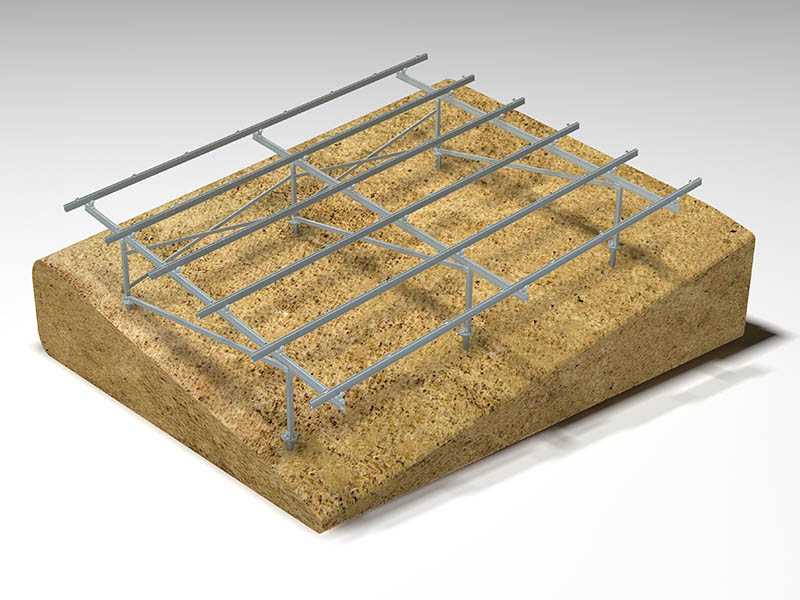

MRac Hillside Ground Terrace is suitable for slope concrete roof or slope land solar PV projects, with strong wind load and snow load resistance. The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites. The system can be adjusted from east-west and south-north direction with special connector design. Patented and certified system design ensure projects safety and quick installation
Features
◆ Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
◆ No Drill on Portrait Beam
It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.
◆ Flexibility and Adjustability
The structure can be adjusted from east-west and south-north with special connector and with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
◆ Foundations Match
Suitable for ground screw piles, concrete foundation and steel foundation.
Tilt Angle
◆ The available installation tilt angle is 0°~60°
◆ Applicable Solar Module: Framed or Frameless
◆ Panel Layout: Portrait or Landscape
Service and Support
◆ Mibet Energy's professional technician team will provide a floating mounting solution based on satellite surveyed data.
◆ Mibet Energy sales team will provide installation guide and on-line service.
◆ Mibet Energy provide 10-year warranty.
Complete ready-to-ship assembly kits
◆ Suitable for pickup vehicle transport
Suitable Module Types and Layout Orientation
◆ Compatible with all major components in the market
Technical Parameter
Installation Site |
Slope concrete roof, Slope Ground |
Foundation |
Concrete Base, Ground Screw |
Tilt Angle |
0-60° |
Wind Load |
60m/s |
Snow Load |
1.6KN/㎡ |
Ground Clearance |
500-2000mm |
Applicable Solar Module |
Framed or Frameless |
Panel Layout |
Portrait or Landscape |
Design Standard |
AS/NZS 1170 , DIN 1055 , JIS C 8955:2017, |
|
International Building Code IBC 2009, |
|
California Building Code CBC 2010 |
Material |
Steel Q235B(Hot-Dip Galvanized) |
Fastener |
SUS304 &Hot-Dip Galvanized &Zinc-Nickel Alloy Electroplated Stee |
Small Components |
Al6005-T5(Anodized) |
Color |
Silver or Customized |
Warranty |
10-Year Warranty |
