PV Ground Mounting Systems

MRac Symmetrical Pro Ground Terrace PGT4 is suitable for medium to large scale solar PV projects. Main beams and post are optimized with better design and less material, with strong wind load and snow load resistance.
  • item no.:

    SPGT4
  • product orgin:

    China
  • color:

    Silver or Customized
  • product detail

PV Ground Mounting Systems

Overview

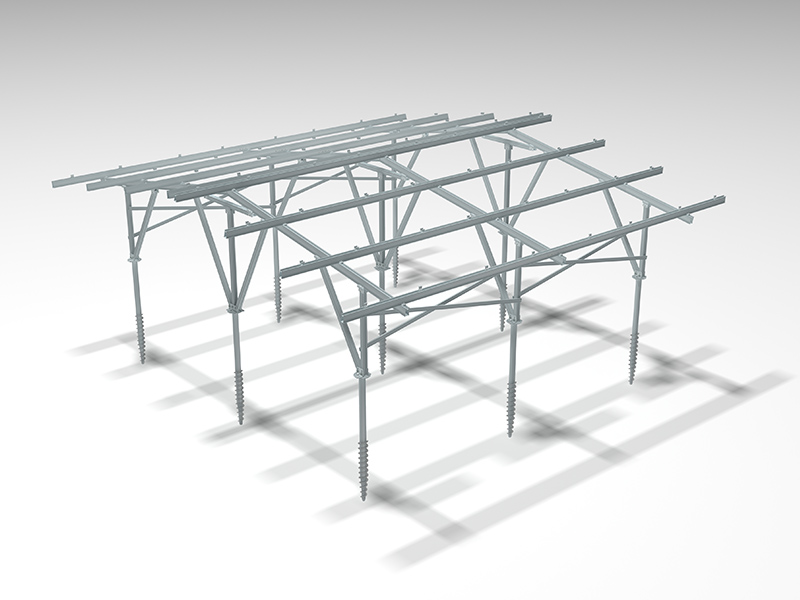

MRac Symmetrical Pro Ground Terrace PGT4 is suitable for medium to large scale solar PV projects. Main beams and post are optimized with better design and less material, with strong wind load and snow load resistance. The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites. Patented and certified system design ensure projects safety and quick installation. Unique dual-orientation design suits for east-west installation, which improve the total capacity at same land area lead to better RoI.





solar ground mounting structure

Features

1.Symmetrical Design of Tilt-in-Nut and Rail Channel

No direction limitation for the nut and rail channel, improving the installation efficiency.

2.A Leading Dual-Orientation and East-West Solution

The East-West system orientation allows better generation results over the day with less generation at noon time and more during early morning and later afternoon.

3.Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

4.Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.






Tilt Angle

The available installation tilt angle is 0°~30°
Applicable Solar Module: Framed or Frameless

Panel Layout:Portrait or Landscape




solar panel racks ground

Service and Support

Mibet Energy's professional sales team will provide basic products introduction and training.
Mibet Energy's professional technician team will provide a floating mounting solution based on satellite surveyed data.
Mibet Energy sales team will provide installation guide and on-line service.
Mibet Energy will provide 10-year quality warranty and 5-year product waranty.





Complete ready-to-ship assembly kits

All components in one package
Suitable for pickup vehicle transport




solar ground mount structures

Suitable Module Types and Layout Orientation

The array layout can be in horizontal
Compatible with all major components in the market




Technical Parameter

  Installation Site

  Ground

  Foundation

  Concrete Foundation , Ground Screw

  Tilt Angle

  0-60°

  Wind Load

  60m/s

  Snow Load

  1.6KN/㎡

  Ground Clearance

  500-2000mm

  Applicable Solar Module

  Framed or Frameless

  Panel Layout

  Portrait or Landscape

  Design Standard

  AS/NZS 1170 , DIN 1055 , JIS C 8955:2017,



  International Building Code IBC 2009,



  California  Building Code CBC 2010

  Material

  Al6005-T5(Anodized)

  Fastener

  SUS304 &Zinc-Nickel Alloy Electroplated Steel

  Small Components

  Al6005-T5(Anodized)

  Color

  Silver or Customized

  Warranty

  10-Year Warranty
